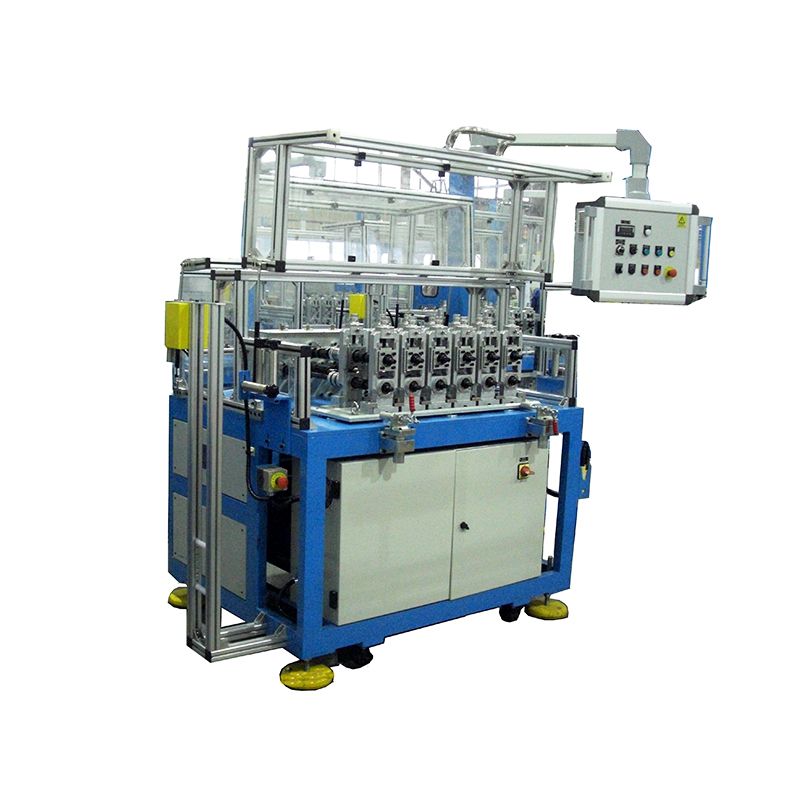

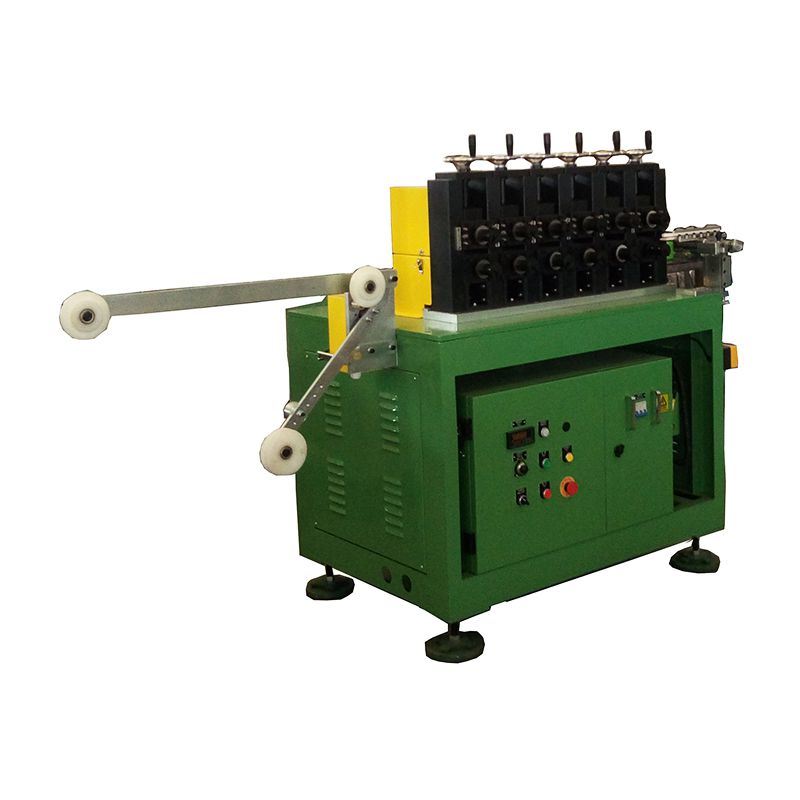

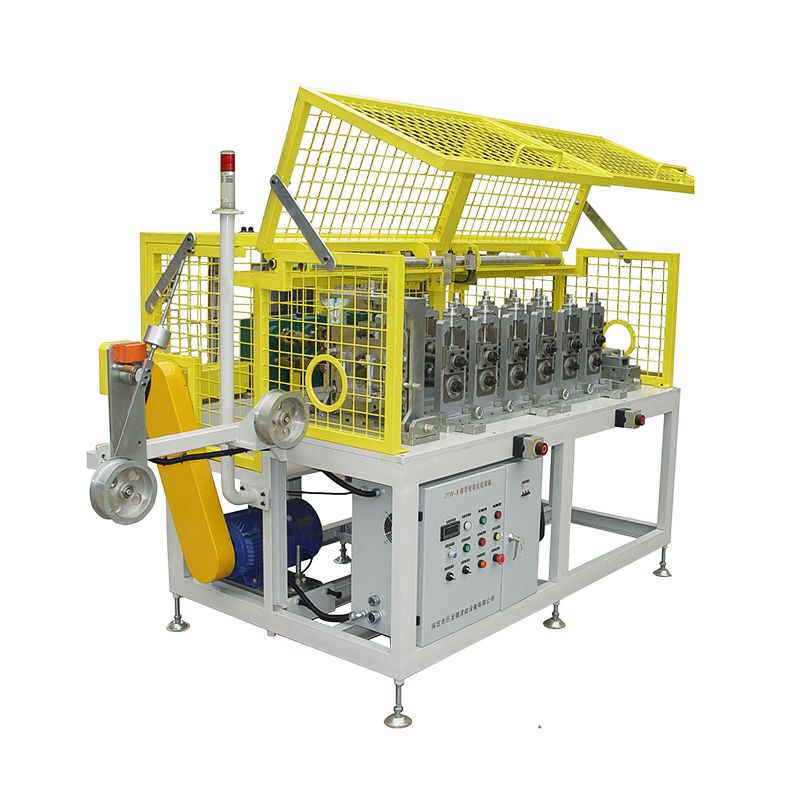

Pre-forming machine is a high-precision and high-configured metal carrier processing equipment commonly used for the initial shaping of metal carriers. Depending on the forming complexity of the products, different sets of forming mechanisms can be selected. It can process various shapes such as U-shaped profile, V-shaped profile, L-shaped profile, C-shaped profile, and can also be customized for other shapes as required.
Features
| Model | |
| Dimensions | L2855mm×W645mm×H1400mm (subject to final design drawings) |
| Power Transmission | 1 set of 5.5kW motor reducer drives two sets of gears vertically, with a gear reduction ratio of 1:1, and two sets of power output from the upper and lower gears |
| Structure | The power shaft is connected to 6 sets of forming mechanisms through universal joint couplings. |
| Forming Mechanism | 6 sets of forming mechanisms without forming wheels, with a gantry structure. Both the upper and lower forming wheel shafts are powered, and the material of the upper and lower shafts is 40Cr, high-frequency quenched. |
| Fixture Mold | 6 sets of forming mechanisms (without forming wheels) installed on a 20mm thick base plate. The base plate is equipped with ball bearings for easy replacement, and the upper shaft adjustment is mechanically and digitally displayed. |
| Adjustment Range | The center adjustment range of the shaft is 70mm to 110mm. |
| Model | | |
| Dimensions | L1500×W1000×H2000mm (subject to final design drawings) | L2300×W1000×H2000mm (subject to final design drawings) |
| Motor Power | 5.5kW | 7.5kW |
| Production Speed | 3～30m/min； | |
| Number of Forming Mechanisms | 9 | 12~14 |
| Adjustment Range of Vertical Axis Spacing | 100～130mm | 100～130mm |
| Transmission Ratio of Vertical Axis | 1/1 | 1/1.2 |
