As a professional manufacturer of rubber equipment, Julong not only offers a wide range of individual machines but also provides customized production lines to meet various production needs for rubber seals and profiles.

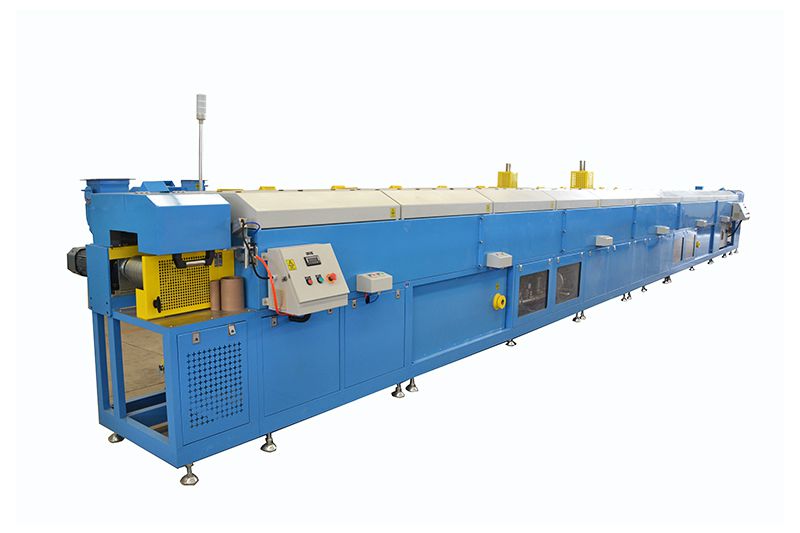

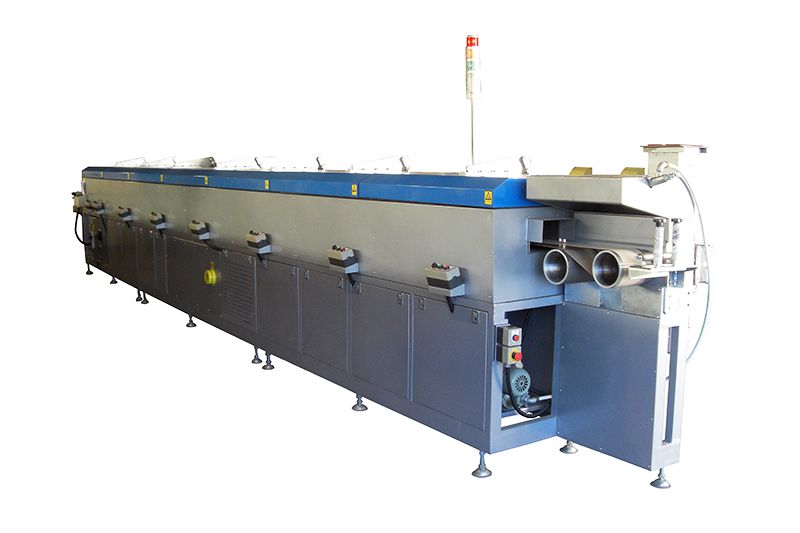

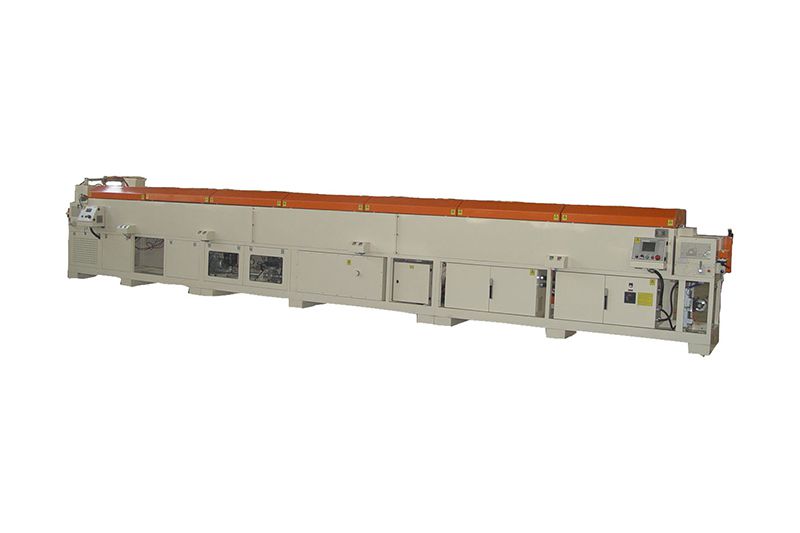

Hot air vulcanization oven (HAV) utilizes high temperature and high-speed hot air to vulcanize rubber profiles, achieving the required performance. For large cross-sectional products, a large circulation of high-speed hot air is used for higher heat exchange efficiency and faster vulcanization speed. The HAV find its applications in the manufacturing of construction materials, automotive components, and rubber vulcanization in the cable manufacturing industry.
Application Materials
Ethylene Propylene Diene Monomer (EPDM) rubber, natural rubber, butyl rubber, etc.
Features
Dimensions | L9000×W2500×H2300mm (customizable) |
Profile Pass-through Aperture Height | Effective size above the conveyor: 100mm |
Conveyor Method | Teflon bet conveyor |
Conveyor Speed | 4~35m/min, variable frequency speed regulation |
Speed Control | Proportional regulator, -50%~+150% |
Heating Temperature | Gas heating: max. 400℃, common range: 300℃~350℃ Electrical heating: max. 300℃, common range: 200℃-280℃ |
Heating Method | Gas heating/electric heating/ gas or electrical heating. Gas heating is available in German Kromschroeder or Weishaupt burners. |
High-temperature Fan | Stainless steel fan |
Temperature Deviation Within The Channel | Longitudinal temperature difference is less than 10℃, with an accuracy of ±1℃. |
Door Opening | Pneumatic or manual opening |
Insulation Layer | Nanoscale insulation material with a thickness of 250mm. |
Alarm | Overheating alarm, abnormal frequency converter alarm, with corresponding protection measures. |
Safety Protection | When the pneumatic cylinder is powered off, there is a device to prevent it from falling. |
