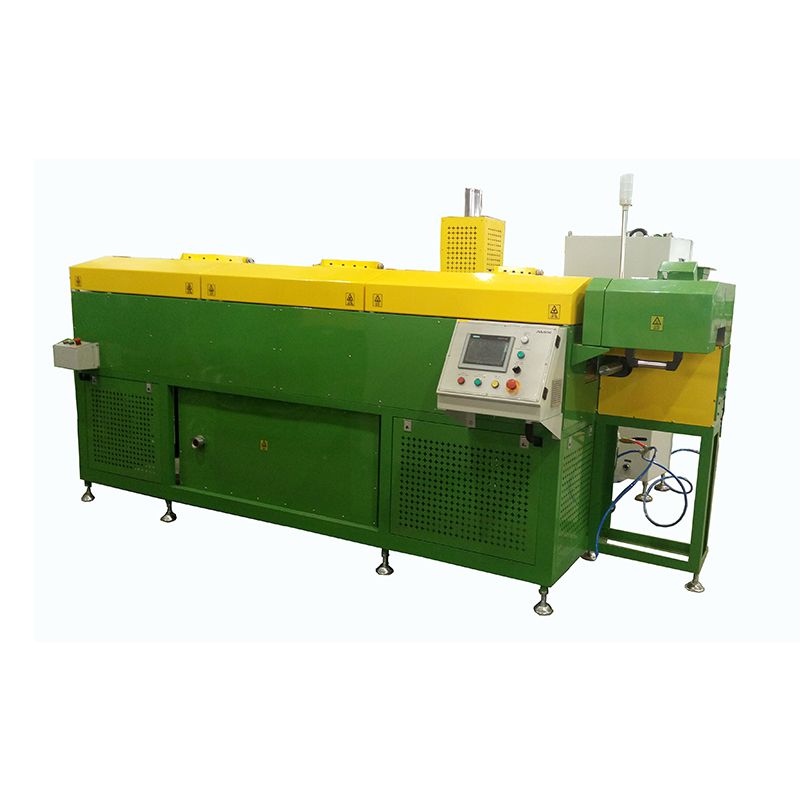

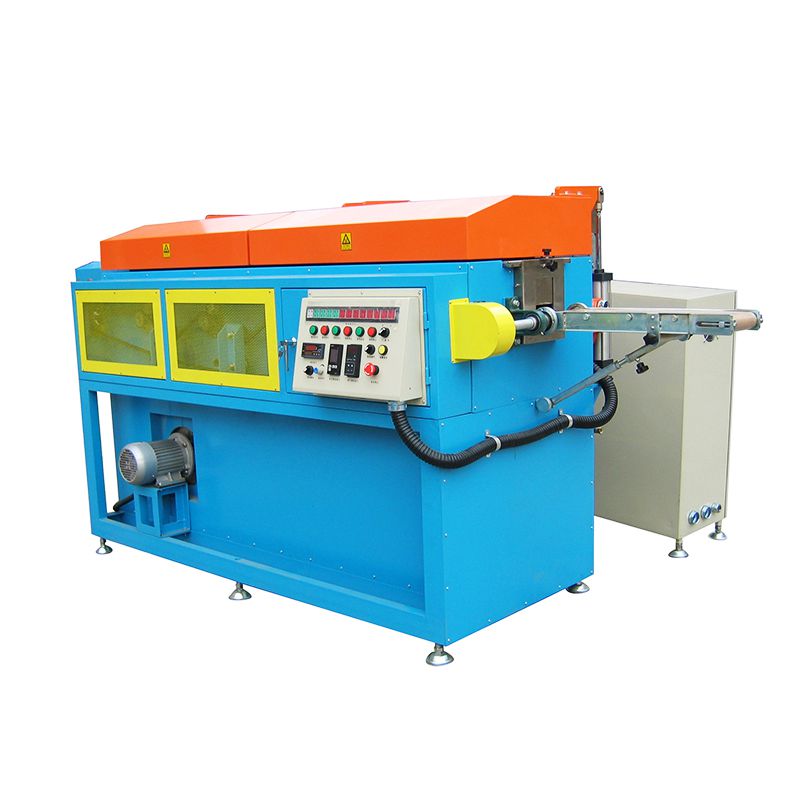

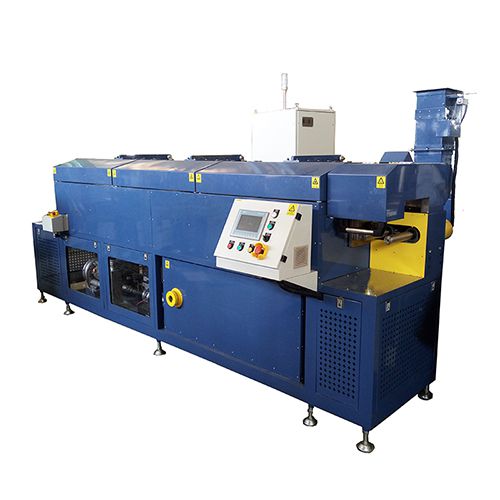

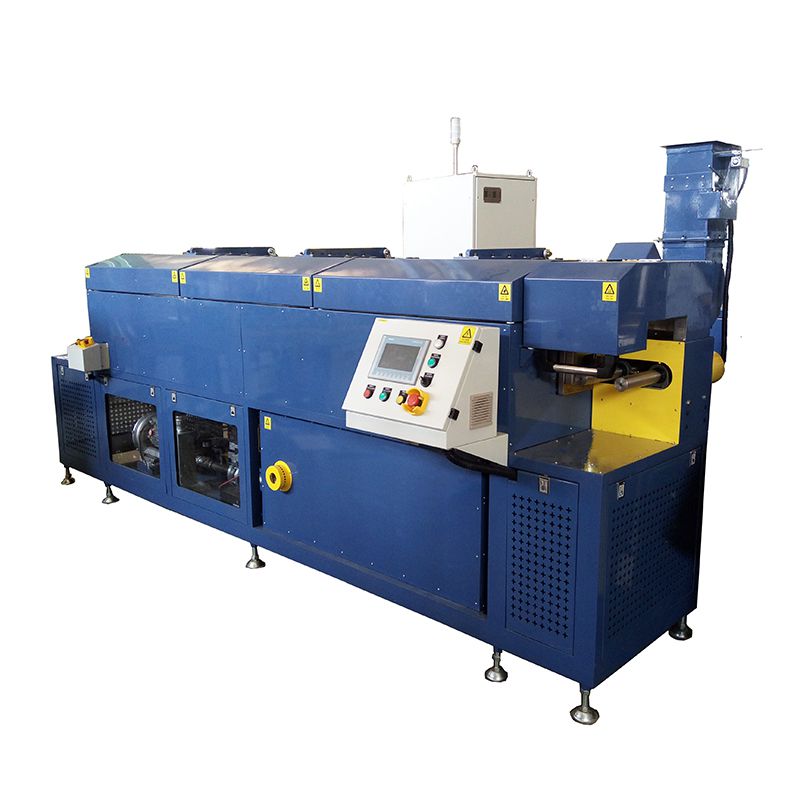

Hot air shock channel utilizes high-speed hot air to heat and cure the surface of rubber strips, effectively improving the surface quality of products. This equipment has a maximum heating temperature of 450˚C, and an effective heating zone length of 3m.
Application
Used for high-temperature curing of various rubber materials in automotive component manufacturing, rubber seal production, and cable manufacturing.
Features
| Dimensions | L3700mm×W1000mm×H1500mm (subject to final design drawings) | |
| Profile Pass-through Aperture Height | Effective size above the roller: 100mm | |
| Conveyor Method | a. Non-driven roller conveyor. b. Active roller conveyor, with water cooling system to effectively prevent product adhesion to the rollers and avoid damage to the product surface. c. Belt conveyor. | |
| Conveyor Speed | 4～35m/min, variable frequency speed regulation | |
| Heating Method | Gas heating/electrical heating/gas or electrical heating | |
| Heating Temperature | Max. 450℃, common range: 250～400℃ | |
| High-temperature Fan | Stainless steel fan | |
| Hot Air Circulation Method | Inlet blowing towards the outlet, and outlet recirculation. | |
| Temperature Deviation Within The Channel | Longitudinal temperature difference is less than 10℃, with an accuracy of ±1℃. | |
| Door Opening | Pneumatic or manual opening | |
| Effective Vulcanization Length | 3000mm | |
| Inner Channel Material | T2.0mm stainless steel plate SUS430 | |
| Detection Device | Chain breakage detection | |
As a professional manufacturer of rubber equipment, Julong not only offers a wide range of individual machines but also provides customized production lines to meet various production needs for rubber seals and profiles.
Julong provides a wide range of rubber extrusion lines designed for the production of rubber seals and profiles with various shapes and sizes, suitable for customers who require high production speed, advanced technology, and excellent material quality. The production line can be customized with various equipment according to customer needs.
Julong provides a specialized rubber co-extrusion line, designed for the production of various types of composite rubber profiles. It is suitable for customers who require high production speed, advanced technology, and excellent material quality. The production line can be customized with various equipment options according to customer needs.
Julong provides professional electrostatic flocking lines for the flocking process on rubber, which is suitable for customers who require a high production speed, advanced technology, and excellent material quality. The production line can be customized with various equipment options according to customer needs.
Julong provides rubber coating line for rubber surface coating. Excellent coating can effectively enhance the material properties of the rubber surface, making it suitable for subsequent processing. This is ideal for customers who require high production speed, advanced technology, and excellent material quality.
