JCD-X-I: Synchronous sawing, suitable for door belt and top seals.
JCD-X-II: Synchronous + intermittent sawing, suitable for all products.
JCD-X-III: Synchronous punching, suitable for door belt products.
JCD-X-IV: Online precision cutting, suitable for products with a framework, such as door frame strips.
Applications

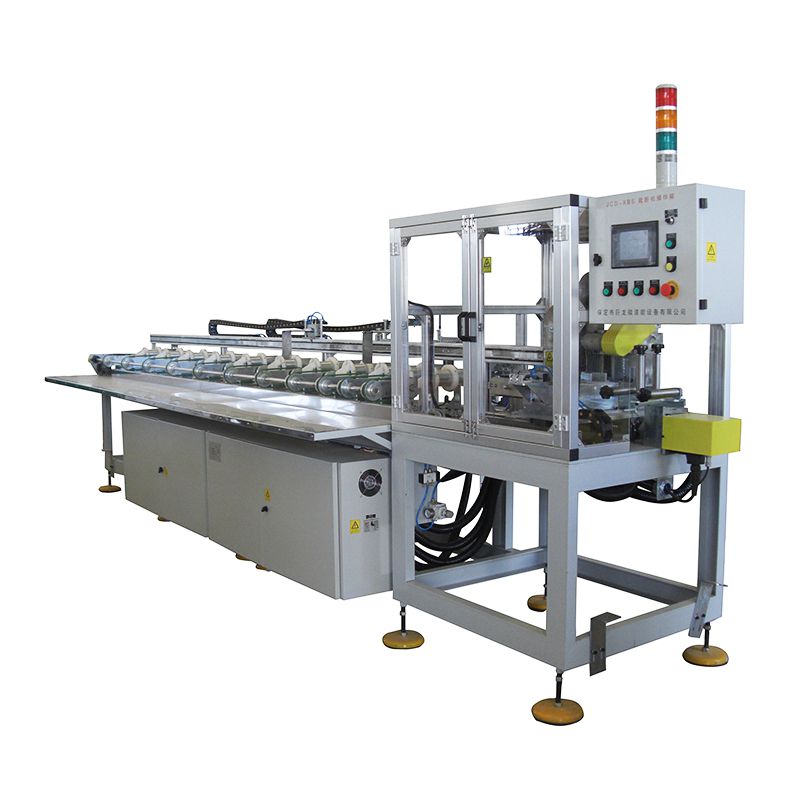

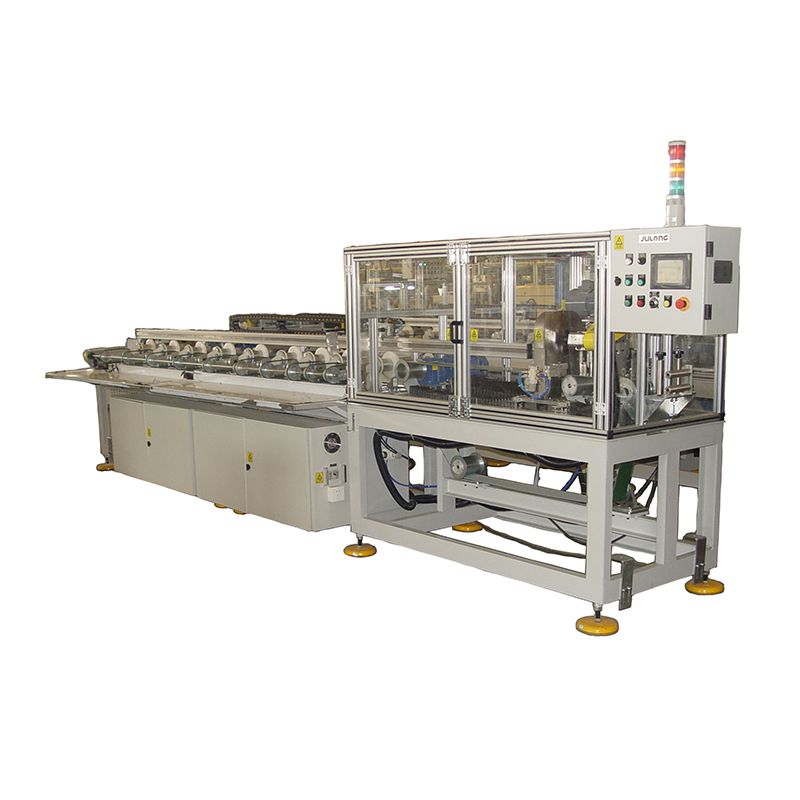

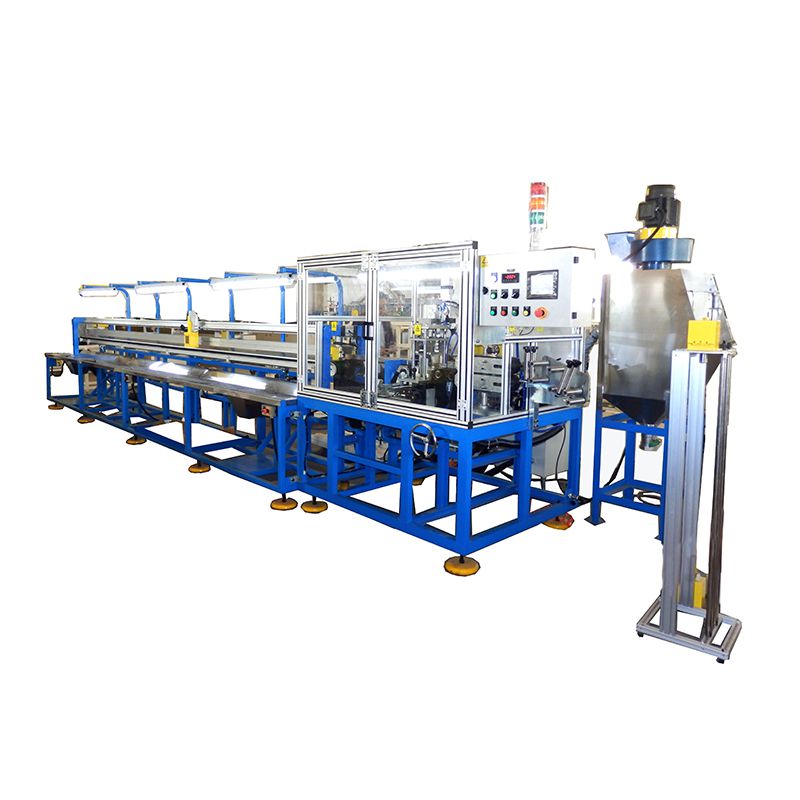

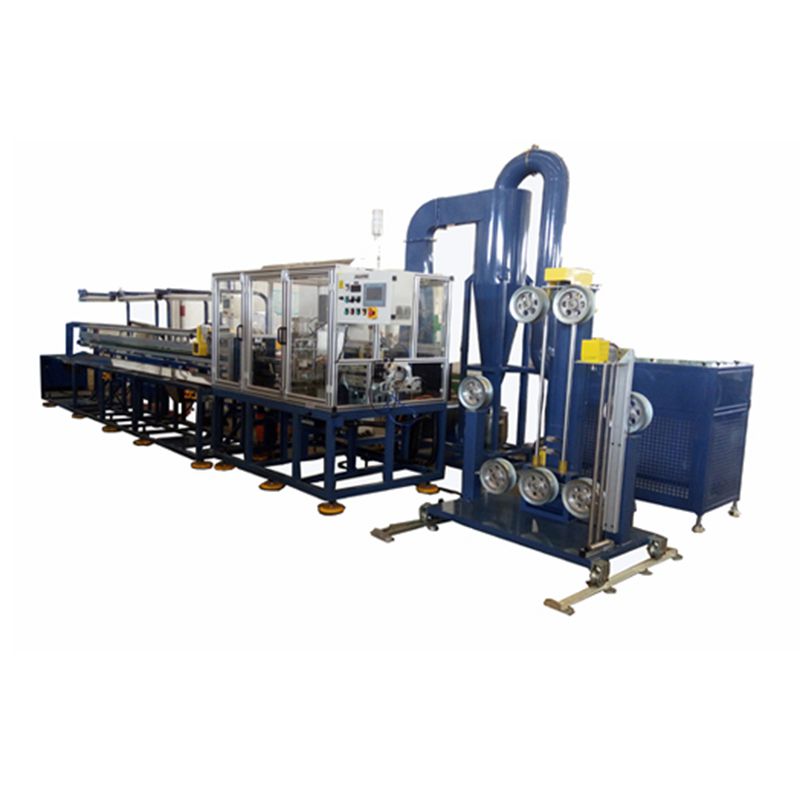

Profile extrusion cutting machine cuts rubber strips according to the set cutting size, using sawing or cutting blade methods, and automatically collects the cut pieces on the receiving table. The machine is operated through a touch screen.
| Feeding and Traction Section | Driven by a servo motor, it uses multi-V belts for traction. The opening height of the traction belt ranges from 0 to 80mm. Cylinder control is used for opening and closing, with manual fine-tuning, electronic measurement of the opening and closing dimensions, and digital display on a meter. |
| Cutting Method | Intermittent, with saw blade/blade cutting. The cutting mechanism is driven by a servo motor to perform the cutting action. The saw blade motor of the cutting blade features variable frequency speed regulation or cylinder control. |
| Synchronized mode is available, allowing coexistence of saw blade and cutting blade modes. The sawing device and soft cutting section are arranged vertically to the production line. The servo-driven follow-up mechanism and servo-driven cutting mechanism perform the cutting action, with a variable frequency motor driving the saw blade. | |
| Length Setting Method | Encoder length measurement and fiber optic length measurement. |
| Roller Stand | Curved roller stand at the feeding end |
| Protective Cover | Integral protection for traction and cutting. |
| Width of Receiving Belt | 90mm |
| Receiving Belt Motor | Variable frequency/servo motor |
| Receiving Section | Belt receiving, with variable frequency speed regulation. The length of the receiving table is set according to the cutting length. |
| Unloading Method | Flip-type unloading/air blowing unloading |
| Cutting Accuracy | ±3mm when using fiber optic detection |
| Product Inspection | Equipped with function for sorting out defective products. |
| Alarm | Various alarms displayed on the touch screen. |
